How to Find Serial Number on Fitness Equipment

Paul Anderson
Updated



How to Find the Serial# on Fitness Equipment

In many cases, the location of the serial number is common between brands and types of equipment. If you do not see your brand listed, we recommend checking the noted location of the serial number for the type of unit.

| AFG (Advanced Fitness Group) Serial # Locations
Back To Top
Type of Unit Serial # Location
Ascent Trainers

 Located on the front stabilizer bar.
Bikes
(Stationary - Recumbent)
 Located on the front stabilizer bar.

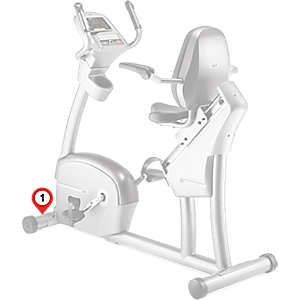

Bikes
(Hybrid)
 Located on the front stabilizer bar.
Ellipticals

 Located on the front stabilizer bar.

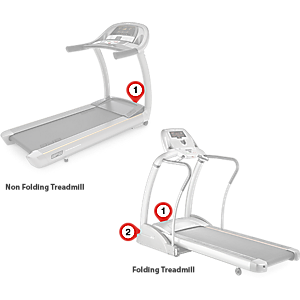

Treadmills

 Folding
  • Located on the front of the machine, near the power cord and/or power switch.
  • Located on the base frame.
Non-Folding
  • Located on the front of the machine, near the power cord and/or power switch.

| BowFlex Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes

 A serial number may be found in one of these locations
    1. Located mid-frame, between the front and rear stabilizers.
    2. Located on the rear upright frame on the user's left side.
    3. VeloCore Model: Located on the front of the bike.

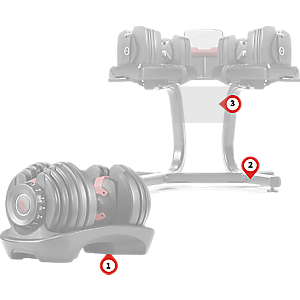

Dumbbells & Stands

 A serial number may be found in one of these locations
    1. Located on the cradle (underneath, side, or in the dumbbell space).
    2. Located on the bottom frame of the stand.
    3. Located on cross plate between the left and right legs of the stand.

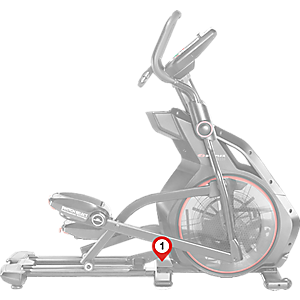

Ellipticals
  1. Located mid-frame on the middle stabilizer.

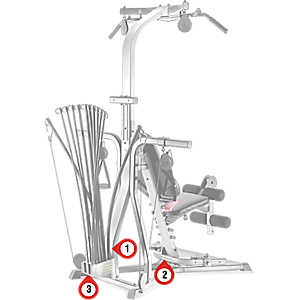

Home Gyms (Power Rods)



 A serial number may be found in one of these locations
  1. Located on the back of lower lat tower.
  2. Located on the squat frame near ground level.
  3. Located underneath the frame of the rod box.

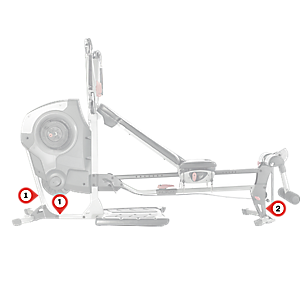

Home Gyms (SpiraFlex)

 A serial number may be found in one of these locations
  1. Located on the frame at ground level, below the SpiraFlex packs
  2. Located at the rear.
Max Trainers
  1. Located on the front stabilizer on the user's right side.

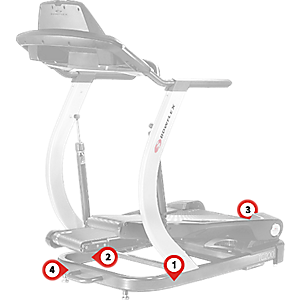

Treadclimbers

 A serial number may be found in one of these locations
  1. Located on the bottom frame, user's left side.
  2. Located on the inside of the bottom frame, user's right side.
  3. Older Units: Located on the front of the unit, near the locking lever.
  4. Older Units: Located on the rear of the unit.
Treadmills
 Located at ground level on the user's left side of the lift frame.

| Concept 2 Serial # Locations
Back To Top
Rower Unit Serial # Location
Model A

 Units manufactured before October 1, 1982, will not have a serial#.  The date of purchase is used for these rowers.

Units after October 1, 1982, the serial# is located on the bottom edge of the mount board for the chain guide.  Serial# can be 2 pairs of numbers separated by a dash or 6 numbers.
Model B

 Located under the left or right footboard (must tip unit on its side to expose).
Model C

 Serial# begins with 6 digits that represent the date the unit was boxed.
A serial number may be found in one of these locations
    1. Located between the "V" of the flywheel support legs.
    2. Located on the bottom side of the rower.

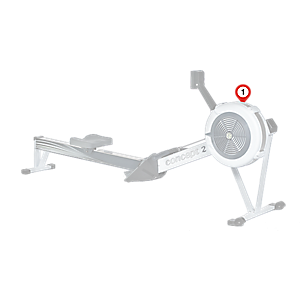

Model D

 Units prior to October 17, 2005, the serial# is located between the "V" of the flywheel support legs on the bottom side of the rower.  Serial# begins with 6 digits that represent the date the unit was boxed.

Units from October 17, 2005, to present the serial# is located between the "V" of the flywheel support legs attached to the left side of the flywheel cover.  Serial# will be three groups of numbers separated by dashes.
Model E

 Located on the left side of the flywheel housing under the box arm.  The flywheel is attached to the box arm and it is the main angled arm.  Serial# will be made up of three groups of numbers separated by dashes.

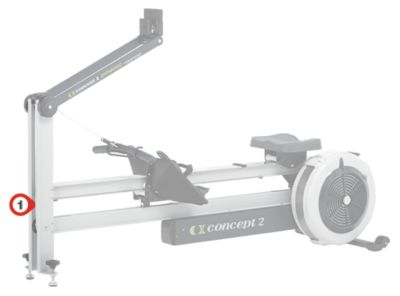

Dynamic Indoor Rower
 Located on the inner left side of the front leg.  The front leg is the leg that attaches to the monitor arm.  Serial# will be made up of three groups of numbers separated by dashes.

| Cybex Serial # Locations
Back To Top
Type of Unit Serial # Location
Arc Trainers

 Located on the front bottom cross-member.
Bikes
(Upright and Recumbent)
 Located on the front stabilizer bar.
Steppers

 Located on the back of the console upright.
Strength

 Note: Multi-station units will have one serial number per station.
Located on the base, near the weight stack.
Treadmills
  1. Located on the bottom front of the machine near the power cord or on/off switch.
  2. Located on the rear crossbar under the treadmill deck.

| Epic Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Indoor Cycles)
 Located on the bottom of the base frame (tilt bike on its side to access).
Bikes
(Upright and Recumbent)
 Located on the bottom of the base frame (front or middle).
Ellipticals

 A serial number may be found in one of these locations
  1. Located on the bottom of the base frame (front or middle; must tip unit on its side to access.)
  2. Located on the rear stabilizer.
  3. Located on the bottom of the ramp.
Strength

 Benches
  • Located on the bottom of the seat pad.
CTS
  • Located on the rear frame, below the weight stack.
Single Stations with Weight Tower
  • Located on the inside of the tower.
Dip Chin and Leg Press
  • Located on the bottom of the frame.
Treadmills

 A serial number may be found in one of these locations
  1. Located on the front of the machine
  2. Located on the crossbar (machine must be in the folded position).
  3. Located on the rear inside deck frame, the user's right side.

| Fitness Gear Serial # Locations
Back To Top
Type of Unit Serial # Location
Ellipticals

 Located underneath the console mast boot.
Treadmills

 Folding
  • Located at the front of the machine, near the power cord and/or power switch.

| Freemotion Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Indoor Cycles)
 A serial number may be found in one of these locations.
  1. Located on the bottom of the frame.
  2. Located on the frame inside the forks.
Bikes
(Upright and Recumbent)
 A serial number may be found in one of these locations.
  1. Located on the bottom of the frame (front, middle, or rear).
  2. Located on the rear stabilizer bar.
Ellipticals

 A serial number may be found in one of these locations.
  1. Located on the front stabilizer bar.
  2. Located on the bottom frame (middle or rear).
Incline Trainer Treadmills

 A serial number may be found in one of these locations.
  1. Located on the front of the machine, subframe, or bottom cross frame.
  2. Located on the subframe, user's right or left.
Treadmills

 A serial number may be found in one of these locations.
  1. Located on the front of the machine.
  2. Located on the cross frame (machine must be in the folded position).
  3. Located on the bottom of the deck frame.
  4. Located on the rear subframe, user's right side.
Strength
 coming soon!

| Gold's Gym Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Indoor Cycles)
 Located on the bottom of the frame.
Bikes
(Upright and Recumbent)
 A serial number may be found in one of these locations.
  1. Located on the bottom of the frame (turn or tilt unit on its side to access).
  2. Located on the front of the shroud.
  3. Located on the front stabilizer bar.
  4. Located on the frame in front of the rear stabilizer bar.
  5. Located on the vertical frame, underneath the seat.
  6. Located on the console mast.
Ellipticals

 A serial number may be found in one of these locations.
  1. Located under the frame, front or rear (tilt unit on its side to access).
  2. Located on the front stabilizer bar.
  3. Located on the rear stabilizer bar.
Treadmills

 A serial number may be found in one of these locations.
  1. Located on the front of the machine.
  2. Located on the cross frame (machine must be in the folded position to access).
  3. Located on the foot frame, user's right side.
  4. Located on the front inside deck frame, user's left (machine must be in the folded position to access).
  5. Located on the rear inside deck frame, user's right (machine must be in the folded position to access).
  6. Located on the upper console mast, user's left.
Strength

 A serial number may be found in one of these locations.
  1. Located under the seat pad.
  2. Located on the stabilizer foot.
  3. Located on the rear bottom frame.

| HealthRider Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Indoor Cycles)
 Located on the front of the bike, mainframe.
Bikes
(Upright and Recumbent)
 A serial number may be found in one of these locations.
  1. Located under the mainframe (front or rear).
  2. Located on the front stabilizer bar.
  3. Located on the rear stabilizer frame (recumbent bikes with an upright rear frame).
Ellipticals

 A serial number may be found in one of these locations.
  1. Located on the rear stabilizer bar.
  2. Located under the mainframe (front, middle, or rear).
  3. Located under the ramp (machines with pedal wheels only).
  4. Located on the foot pedal arm, user's left.
Strength

Located under the frame, the user's right side.
Treadmills

 A serial number may be found in one of these locations.
  1. Located at the front of the machine.
  2. Located on the cross frame (machine must be in the folded position).
  3. Located inside the deck frame, the user's left or right side (machine must be in the folded position).
  4. Located on the front outside deck frame, user's left side.
  5. Located inside the foot frame, the user's right side.
  6. Located on the rear inside deck frame, the user's right or left side (machine must be in the folded position).
  7. Located on the upper console mast, user's left side.

| Horizon Fitness Serial # Locations Back To Top
Type of Unit Serial # Location
Bikes
(Indoor Cycles)
 Located on the rear of the base frame.
Bikes
(Upright and Recumbent)
 Located on the front stabilizer bar.
Ellipticals

 A serial number may be found in one of these locations.
  1. Located underneath the console mas boot.
  2. Located on the front stabilizer bar.
Strength

 Located on the rear base frame, left side.
Treadmills

 Located on the front of the machine, near the power cord and/or power switch.

| Image Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Indoor Cycles)
 Located on the bottom of the frame (must tilt bike on its side to access).
Bikes
(Upright and Recumbent)
 A serial number may be found in one of these locations.
  1. Located on the front stabilizer bar.
  2. Located on the rear frame, behind the seat (recumbent bikes with an upright rear frame).
Steppers

 Located on the front of the machine.
Strength

 Benches
A serial number may be found in one of these locations.
  1. Located under the seat pad.
  2. Located under the back pad.
Weight System
A serial number may be found in one of these locations.
  1. Located under the seat pad.
  2. Located on the lower frame, near the weight stack.
  3. Located on the front of the leg press.
Treadmills

 A serial number may be found in one of these locations.
  1. Located on the front of the machine.
  2. Located on the crossbar (machine must be in its folded position).
  3. Located inside the deck frame, on the user's right or left side (machine must be in its folded position).
  4. Located under the machine (machine must be in its folded position).

| Keiser Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Indoor Cycles)
 Located on the backside of the main upright frame, in front of the flywheel.
Ellipticals
 coming soon!

| Landice Serial # Locations
Back To Top
Type of Unit Serial # Location
Elliptical Trainers
 Located at the front, bottom right of the machine.
Treadmills

 Located at the front of the machine, near the power cord and/or power switch.

| LeMond Fitness Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Indoor Cycles)
 A serial number may be found in one of these locations.
  1. Located on the underside of the mainframe behind the belt cover, user's left side.
  2. Located on the bottom of the front stabilizer bar (turn unit on its side to access).
Bikes
(Upright and Recumbent)
 Located on the front stabilizer bar, near the bottom of the bike.

| LifeFitness Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Upright and Recumbent)
 Upright
A serial number may be found in one of these locations.
  1. Located on the front stabilizer bar.
  2. Located on the seat post frame (remove the plastic shroud to access).
  3. Located under the bottom frame (turn unit on its side to access).
Recumbent
A serial number may be found in one of these locations.
  1. Located on the front stabilizer bar.
  2. Located under the bottom frame (turn units on its side to access).
  3. Located under the rubber tray (remove screws and tray to access).
  4. Located on the seat track.
Crosstrainers

 A serial number may be found in one of these locations.
  1. Located on the front of the machine (must remove shroud to access).
  2. Located on the front stabilizer bar.
  3. Located on the rear stabilizer bar.
  4. Located at the rear end of the machine, near the power entry module.
  5. Located on the rear tower (must remove shroud to access).
Consoles and Attachable TVs

 LED/LCD, Achieve, Inspire and Engage Consoles
A serial number may be found in one of these locations.
  1. Located on the backside of the console.
  2. Located on the underside of the plastic.
Attachable TV
A serial number may be found in one of these locations.
  1. Located on the backside of the TV.
  2. Located on the underside of the plastic.
Steppers

 A serial number may be found in one of these locations.
  1. Located on the front of the machine (must remove shroud to access).
  2. Located on the front stabilizer bar.
Strength

 Located under the weight stack.
Summit Trainers

 A serial number may be found in one of these locations.
  1. Located on the front stabilizer bar.
  2. Located on the front lower frame (must remove shroud cover to access).
  3. Located on the rear stabilizer bar (must remove shroud cover to access).
Treadmills

 A serial number may be found in one of these locations.
  1. Located on the front of the machine, near the power cord and/or power switch.
  2. Located on the rear cross frame.
  3. Located under the rear end cap (must remove end cap to access).

| Lifestyler Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes

 A serial number may be found in one of these locations.
  1. Located on the rear stabilizer bar.
  2. Located on the frame, near the rear stabilizer bar.
  3. Located on the seat post.
  4. Located on the front stabilizer bar.
Climbers

 Located on the front stabilizer bar.
Skiers

 A serial number may be found in one of these locations.
  1. Located on the front identification plate.
  2. Located on mid-frame.
Steppers

 A serial number may be found in one of these locations.
  1. Located on the front stabilizer bar.
  2. Located on the main upright frame bar.
  3. Located on the rear stabilizer bar.
Strength

 A serial number may be found in one of these locations.
  1. Located on the lower frame (left, right, or rear side).
  2. Located on the upright frame (left or right side).
  3. Located under the seat pad.
Treadmills

 A serial number may be found in one of these locations.
  1. Located on the front of the machine.
  2. Located under the machine (machine must be in its folded position).
  3. Located on the side of the deck frame, the user's left side.

| Livestrong by Matrix Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Indoor Cycles)
 Located on the lower side frame, user's left side.
Bikes
(Upright and Recumbent)
 Located on the front stabilizer bar.
Ellipticals

 Located on the front stabilizer bar.
Treadmills

 Located on the front of the machine, near the power switch.

| Matrix Serial # Locations
Back To Top
Type of Unit Serial # Location
Ascent Trainers

 A serial number may be found in one of these locations.
  1. Located on the rear frame leg, the user's right side.
  2. Located on the front stabilizer bar.
Bikes
(Upright and Recumbent)
 A serial number may be found in one of these locations.

Body/Base of Machine Only
  1. Located on the front stabilizer bar.
  2. Located on the lower mast (must remove cover).
Bikes
(Hybrid)
 A serial number may be found in one of these locations.

Body/Base of Machine Only
  1. Located on the front stabilizer bar.
  2. Located on the seat track (seat must be in lowest position).
Consoles

 A serial number may be found in one of these locations.

Ascent Trainer Consoles
  1. Located on bar code sticker, near the connection between the console and mast.
  2. Found under Manager Mode or Engineering Mode in the display.
Bike Consoles (Upright, Recumbent, and Hybrid)
  1. Located on bar code sticker, near the connection between the console and mast.
  2. Found under Manager Mode or Engineering Mode in the display.
Elliptical Consoles
  1. Located on bar code sticker, near the connection between the console and mast.
  2. Found under Manager Mode or Engineering Mode in the display.
Stepper Consoles
  1. Located on bar code sticker, near the connection between the console and mast.
  2. Found under Manager Mode, Engineering Mode, or Service Mode in the display.
Treadmill Consoles
  1. Found under Manager Mode or Engineering Mode in the display.
  2. Located on the back of the console.
Ellipticals

 A serial number may be found in one of these locations.

Body/Base of Machine Only
  1. Located under the lower console mast boot (remove plastic cover).
  2. Located on the user's left side wheel track.
KRANKcycle

 Located on the lower frame, the user's left side.
Rowers

 Located on the front stabilizer bar.
Stepmills

 Located on the frame in the front of the machine on the user's left.
Steppers

 A serial number may be found in one of these locations.

Body/Base of Machine Only
  1. Located on the front of the machine, near the power switch.
  2. Located below the bottom of the console mast (beneath a rubber boot).
Treadmills

 A serial number may be found in one of these locations.

Body/Base of Machine Only
  1. Located on the front of the machine, near the power switch.
  2. Located on the front crossbar with the transport wheels.

| Merit Fitness Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes

 Located on the front stabilizer bar.
Ellipticals

 Located on the console mast bracket (must remove cover).
Treadmills

 A serial number may be found in one of these locations.

Folding
  1. Located on the front of the machine, near the power cord and/or power switch.
  2. Located on the cross frame, underneath the running deck (machine must be in folded position).

| Nautilus Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Upright and Recumbent)
 A serial number may be found in one of these locations.
  1. Located on the front stabilizer bar.
  2. Located on the rear stabilizer bar.
Stepmills

 Located on the inside frame, the user's right side.
Steppers

 Located on the front of the machine.
Treadclimbers

 Located under the treadle, user's left side.
Treadmills

 A serial number may be found in one of these locations.
  1. Located on the left-hand incline arm (incline treadmill to 15% for best view).
  2. Located on the front of the machine, near the power cord and/or power switch.

| NordicTrack Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Indoor Cycles)
 A serial number may be found in one of these locations.
  1. Located on the bottom of the mainframe (front and rear).
  2. Located on the frame, above the chain guard.
Bikes
(Upright and Recumbent)
 A serial number may be found in one of these locations.
  1. Located on the bottom of the mainframe.
  2. Located on the front stabilizer bar.
  3. Located on the rear stabilizer bar.
  4. Located on the lower frame, behind the seat mounting post.
  5. Located on the lower or upper console mast.
Ellipticals

 A serial number may be found in one of these locations.
  1. Located on the bottom of the frame (front, middle, or rear).
  2. Located on the rear stabilizer bar.
  3. Located on the front stabilizer bar.
  4. Located on the bottom of the ramp assembly.
  5. Located on the inside console support tube, the user's right side.
Steppers

 Located on the lower frame beneath the pedals.
Strength

 A serial number may be found in one of these locations.
  1. Located under the seat.
  2. Located behind the backrest.
  3. Located on the lower frame (rear end).
Treadmills
(Incline Trainers)
 A serial number may be found in one of these locations.
  1. Located on the front cross member.
  2. Located on the frame rail, the user's right side.  Behind or in front of the console upright tube.
Treadmills

 A serial number may be found in one of these locations.
  1. Located on the front cross member.
  2. Located on the front of the machine (machine must be in the down position).
  3. Located on the rear inside frame rail, the user's right side.

| Octane Fitness Serial # Locations
Back To Top
Type of Unit Serial # Location
Ellipticals
(Seated)
 There are two separate serial numbers per machine: the base and console.

Base/Body of Machine Only
A serial number may be found in one of these locations.
  1. Located in the seat track, the user's right side (seat must be in the lowest position).
  2. Located on the metal frame just inside of the flywheel, the user's right side.
Console Only
A serial number may be found in one of these locations.
  1. Located on the backside of the console (cover must be removed).
  2. Located on the lower edge of the console (cover must be removed).
Ellipticals
(Standing)
 There are two separate serial numbers per machine: the base and console.

Base/Body of Machine Only
  • Located below the right chrome rail next to where the power supply plugs into the machine.
Console
A serial number may be found in one of these locations.
  1. Located on the bottom edge of the upper console (just above the keypad).
  2. Located on the underside of the console.

| Precor Serial # Locations

Serial numbers of Precor equipment are almost always on a white label below a black barcode (appears similar to a UPC code).  Depending on the date of manufacture, the serial number is an alphanumeric combination that is either 10 or 13 characters long.  The serial number is in different locations depending on the type of equipment you own.
Back To Top
Type of Unit Serial # Location
AMTs

 Located on the front base of the machine.
Consoles

 P80
A serial number may be found in one of these locations.
  1. View serial number through the system menu - About.
  2. Located on a bar code sticker on the back of the console, under the plastic cover.
P30
  • View serial numbers through the information display settings.
P20
  • Located on a bar code sticker on the back of the console.
P10
  • View serial numbers through the information display settings.
Bikes
(Upright and Recumbent)
 A serial number may be found in one of these locations.
  1. Located on the bottom of the frame (turn unit on its side to access).
  2. Located on the rear foot, near the floor (may turn unit on its side to access).
Ellipticals

 A serial number may be found in one of these locations.
  1. Located on the rear of the machine, near the power switch.
  2. Located on the frame, underneath the hood.
Steppers

 A serial number may be found in one of these locations.
  1. Located on the bottom of the foot pedals.
  2. Located on the front cover, near the power switch, user's left side.
Strength
 Equipment with a seat
  • Located underneath the seat support.
Equipment without a seat
  • Located along the base frame behind the weight stack.
Weight Benches and Racks
  • Located on the underside or rear of the main horizontal (or angled) frame support.
Stretch Trainers

 A serial number may be found in one of these locations.
  1. Located on the mainframe, behind the seat.
  2. Located on the bottom of the frame (turn unit on its side to access).
Treadmills

 General Models
A serial number may be found in one of these locations.
  1. Located in front of the machine, near power cord entry.
  2. Located under the rear frame, user's left side.

Older Models
A serial number may be found in one of these locations.
  1. Located on the front of the machine, on the hood, or the frame under the hood (must remove hood).
  2. Located on the center crossbar, under the deck.

| Proform Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Indoor Cycles)
 Located on the bottom of the frame (front, middle, or rear).
Bikes
(Upright and Recumbent)
 A serial number may be found in one of these locations.
  1. Located on the bottom of the frame (front or middle).
  2. Located in front of the machine.
  3. Located under the front stabilizer bar.
  4. Located on the rear stabilizer bar.
  5. Located on the base of the frame, rear end.
Climbers

 A serial number may be found in one of these locations.
  1. Located on the front stabilizer bar.
  2. Located on the mainframe between the pedals.
Cross Trainers

 A serial number may be found in one of these locations.
  1. Located on the rear crossbar.
  2. Located on the mainframe between the pedals.
Ellipticals

 A serial number may be found in one of these locations.
  1. Located on the underside of the mainframe (front, middle, or rear).
  2. Located on the front stabilizer bar.
  3. Located on the rear stabilizer bar.
Skiers

 A serial number may be found in one of these locations.
  1. Located on the front cross member.
  2. Located inside mainframe, under pedal arms, user's right side.
Steppers

 Located on the front stabilizer bar.
Treadmills

 A serial number may be found in one of these locations.
  1. Located on the front of the machine, near power entry module or base (machine must be in the down position).
  2. Located on cross frame (machine must be in folded position).
  3. Located on the bottom of the machine (machine must be in folded position).
  4. Located inside the deck frame, user's left or right side (machine must be in folded position).
  5. Located on the foot frame, user's right side.

| Reebok Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Indoor Cycles)
 Serial# may be found in one of these locations.
  1. Located on top of the bottom frame
  2. Located inside the forks, on the user's left side.
Bikes
(Upright and Recumbent)
 Serial# may be found in one of these locations.
  1. Located on the bottom of the frame; Front, middle or rear (turn unit on its side to access).
  2. Located on the top of the frame, near the front stabilizer bar.
  3. Located on the bottom of the rear stabilizer bar.
  4. Located on the top of the frame, near the rear stabilizer bar.
Strength

 Serial# may be found in one of these locations.
  1. Located under the seat.
  2. Located on the rear of the frame.
Treadmills

 Serial# may be found in one of these locations.
  1. Located on the front of the machine, near the power cord and/or power switch.  On the user's left or right.
  2. Located on the lower frame or crossbar (machine must be in the folded position).
  3. Located inside the deck frame (machine must be in the folded position).
  4. Located on the rear inside deck frame.  On the user's right side.
  5. Located under the treadmill (machine must be in the folded position).

| Schwinn Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Airdynes)
 Serial# may be found in one of these locations.
  1. Located on the front stabilizer bar.
  2. Located on the mainframe, below the bottom bracket.
  3. Located on the chain bracket, user's left side.
Bikes
(Indoor Cycles)
 Serial# may be found in one of these locations.
  1. Located under the mainframe (must tilt the machine to access).
  2. Located on the upright main frame, behind the chain guard.
Bikes
(Upright and Recumbent)
 Located on the underside of the rear stabilizer bar.
Ellipticals

 Located on the underside of the machine base (must tilt the machine to access).
Rowers
 coming soon!
Steppers
 coming soon!
Strength
 coming soon!
Treadmills
 coming soon!

| SportsArt Serial # Locations
Back To Top
Type of Unit Serial # Location
Alt Trainer

 X-Trainers
A serial# may be found in one of these locations.
  1. Located on the rear of the base frame.
  2. Located under the rear transport handle, behind the seat (units with transport handle).
Pinnacle Alt Trainers
A serial# may be found in one of these locations.
  1. Located on the front cover.
  2. Located mid-frame.
Bikes
(Indoor Cycles)
 Located on the front of the frame.
Bikes
(Recumbent & Upright)
 A serial# may be found in one of these locations.

Recumbent Bike
  1. Located behind the seat.
  2. Located on the lower front cover.
  3. Located under the seat rail frame.
  4. Located on the vertical frame, under the transport handle.
Upright Bike
A serial# may be found in one of these locations.
      5. Located on the rear vertical post frame, facing the cover.
      6. Located on the rear cover by the power switch (units with a rear support cover).
Ellipticals

 A serial# may be found in one of these locations.
  1. Located on the lower front cover center.
  2. Located on the rear cover, near the power switch/power cord/or above the transport wheel.
  3. Located under the rear cover, right side of the frame (look on the frame inside the cover opening for the glide rails).
Rowers

 A serial# may be found in one of these locations.
  1. Located on the front cover.
  2. Located on the frame, near the power switch.
Steppers

 A serial# may be found in one of these locations.
  1. Located on the front main frame (remove front cover).
  2. Located on the front stabilizer frame.
Strength

 Single Station & Dual Function
  • Located on the frame by the weight stack.
Smith, Functional Trainer
  • Located on the frame center.
Free Weight Benches
  • Located on the frame, under bench-center.
Treadmills

 Located on the front cover, or frame, near the power switch.

| StairMaster Serial # Locations
Back To Top
Type of Unit Serial # Location
Steppers

 Located on the front stabilizer bar.
Stepmills

 Located on the frame in the lower front of the machine on the user's left.
Treadmills

 Located on the front of the machine, near the power cord and/or power switch.

| Star Trac (Unisen) Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Indoor Cycle)
 Please note that the serial number and SKU number, if available, can be found in one of these locations.
  1. Located on the bottom of the front stabilizer bar.
  2. Located on the inside of the frame, by the flywheel.
  3. Located on the bottom of the cross member, rear end.
Bikes
(Upright & Recumbent)
 Please note that the serial number and SKU number, if available, can be found in one of these locations.
  1. Located on the front stabilizer bar.
Bikes
(Turbo Trainer)
 Please note that the serial number and SKU number, if available, can be found in one of these locations.
  1. Located on the front stabilizer bar.
Consoles and PVS

 A serial number may be found in one of these locations.

Consoles
  1. Located on the back of the console.
  2. Found under Manager Mode/Maintenance Mode in the display.
PVS
  1. Located on the back of the PVS (personal viewing screen).
CrossTrainers/Total Body Trainers

 Located on the front stabilizer bar.
Stairmills

 A serial number may be found in one of these locations.
  1. Located inside the rear cross frame.
  2. Located on the foot frame.
Steppers

 Located on the front stabilizer bar.
Strength

 A serial number may be found in one of these locations.
  1. Located on the base of the weight stack.
  2. Located on the rear of the unit, at the base of the mainframe.
Treadclimbers

 Located on the front of the machine, below the mast.
Treadmills

 A serial number may be found in one of these locations.
  1. Located on the front of the machine, near the power switch.
  2. Located on the rear of the machine, outside frame (remove plastic cover).

| Tectrix Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Upright & Recumbent)
 Located on the front stabilizer bar.
Steppers

 A serial number may be found in one of these locations.
  1. Located on the frame, in between the pedals.
  2. Located on the front of the machine, near the power entry area.

| Tempo Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes

 Located on the front stabilizer bar.
Ellipticals

 A serial number may be found in one of these locations.
  1. Located on the rear stabilizer bar.
  2. Located on the front stabilizer bar.
  3. Located on the console mast bracket.
Treadmills

 A serial number may be found in one of these locations.

Folding
  1. Located on the front of the machine, to the left of the power cord and/or power switch.
  2. Located on the cross frame, underneath the running deck (machine must be in folded position).
  3. Located on the front stabilizer leg.

| Tomahawk Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Indoor Cycles)
 Located on the mainframe, the user's lower left side.  Also called the 'Product Code'.
Bikes
(Reebok/Tomahawk Indoor Cycles)		 Located on the bottom main frame, rear end (tilt the machine to access).

| Triumph Serial # Locations
Back To Top
Type of Unit Serial # Location
Treadmills

 Located on the front of the machine, near the power cord and/or power switch.

| Trotter Serial # Locations
Back To Top
Type of Unit Serial # Location
Treadmills

 Located on the front of the machine near the power cord and/or power switch.

| True Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Upright & Recumbent)
 A serial number may be found in one of these locations.
  1. Located on the frame plate, behind the transport wheels.
  2. Located on the bottom of the base frame (tilt machine to access).
  3. Located on the rear main frame arch, under the seat.
  4. Located on the mainframe column, at the bottom under the console.
Ellipticals

 Located on the front of the left track.
Treadmills

 Located on the front of the machine, near the power cord and/or power switch.

| Vision Fitness Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Upright and Recumbent)
 Some models have two separate serial numbers per machine: the base and the console.

Body/Base of Machine Only
  • Located on the front axle tube.
Bikes
(Indoor Cycles)
 Located on the rear base frame.
Consoles

 Some models may have a separate serial number for the console.

Bikes
  1. Located on the back of the console.
  2. Located on the bottom of the console.
Ellipticals
  1. Located on the back of the console.
  2. Located on the bottom of the console.
Treadmills
  • Located on the back of the console.
Ellipticals

 Some models have two separate serial numbers per machine: the base and the console.

Body/Base of Machine Only
  1. Located on the front axle tube.
  2. Located on the fame of the machine.
  3. Located on the console mast bracket (remove cover).
Strength

 Functional Trainer
  • Located on the floor support, the user's right side.
Single Station & Multi Station
  • Located on the center floor support.
Benches
  • Located on the backrest support tube.
Treadmills

 Some models have two separate serial numbers per machine:  the base and the console.

Body/Base of Machine Only
  • Located on the front of the machine, underside of the mainframe.

| Weider Serial # Locations
Back To Top
Type of Unit Serial # Location
Skiers

 Located on the rear of the machine, bottom (must tilt the machine to access).
Steppers

 A serial number may be found in one of these locations.
  1. Located on the mainframe, the user's right side.
  2. Located on the front stabilizer, user's left side.
Strength

 A serial number may be found in one of these locations.
  1. Located under the seat.
  2. Located behind the back pad.
  3. Located on the lower frame.
  4. Located on the lower stabilizer foot.
Treadmills

 A serial number may be found in one of these locations.
  1. Located on the front of the machine.
  2. Located on the cross frame (machine must be in folded position).
  3. Located on the side of the deck frame, the user's left side.

| Weslo Serial # Locations
Back To Top
Type of Unit Serial # Location
Bikes
(Upright, Recumbent and Indoor Cycles)
 A serial number may be found in one of these locations.
  • Located under the mainframe (in most cases, tilt the machine to access).
  • Located on the front stabilizer bar.
  • Located on the rear frame behind the seat.
  • Located on the frame in front of the rear stabilizer.
  • Located on the seat post frame.
  • Located on the rear frame (may have to tip machine to the side to access).
Climbers

 Located on the front stabilizer.
Ellipticals

 A serial number may be found in one of these locations.
  • Located on the bottom of the frame (front or rear, tilt unit to access).
  • Located on the rear stabilizer bar.
  • Located on the front of the machine.
Rowers

 Located below the main monitor.
Skiers

 Located on the front of the machine.
Steppers

 A serial number may be found in one of these locations.
  • Located on the front stabilizer bar.
  • Located on the frame, in front of the steps.
  • Located on the frame, in between the steps.
  • Located on the rear stabilizer bar.
Strength

 A serial number may be found in one of these locations.
  • Located under the seat pad.
  • Located on the stabilizer frame.
  • Located on the mid-frame stabilizer.
  • Located on the base of the frame.
Treadmills
 A serial number may be found in one of these locations.
  • Located on the front of the machine.
  • Located on the side of the deck frame, the user's left side.
  • Located inside the deck frame, user's left side.
  • Located on the bottom of the machine (machine must be in folded position).
  • Located on the crossbar (machine must be in folded position).
  • Located on the lower console mast.






Was this article helpful?
0 out of 0 found this helpful

Comments

0 comments

Please sign in to leave a comment.

Articles in this section

Customer Service Hours:
8:00am - 5:00pm CST Monday to Friday
